ATLAS BL
Atlas BL is the EVO Corse 17″ alloy wheel for off-road use, featuring threaded holes on its outer edge. This provision allows for a modular configuration, choosing between a beadlock ring and a protection ring according to the intended use.
In the beadlock-ring configuration, Atlas BL is available in 9×17″. When a beadlock ring is not required, the 8×17″ version uses a protection ring that covers the threaded holes and helps safeguard the wheel’s outer edge. The protection ring can also be customised in colour.
AVAILABLE SIZES

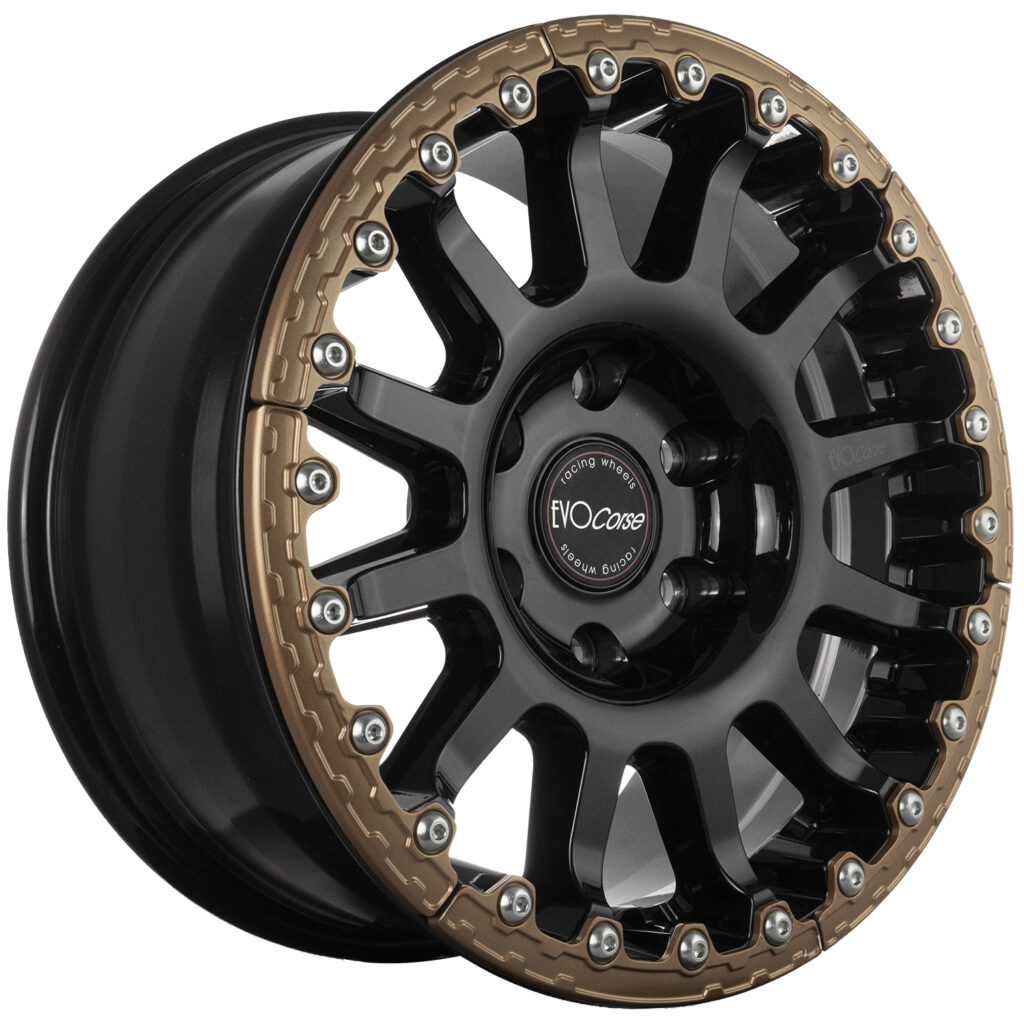

Atlas BL 9×17″ with beadlock ring
The 9×17″ configuration is designed for use with a beadlock ring and is intended for off-road applications requiring this solution on the outer edge of the wheel.
| Size | ET | PCD | Weight |
|---|---|---|---|
| 9×17″ | from -52 to 20 | from 5×114.3 to 5×150 | from 16.5 to 18.1 kg |
Atlas BL 8×17″ with protection ring
The 8×17″ configuration uses a protection ring that covers the threaded holes and protects the wheel’s outer edge when a beadlock ring is not required.
| Size | ET | PCD | Weight |
|---|---|---|---|
| 8×17″ | from -40 to 33 | from 5×114.3 to 5×150 | from 15.1 to 16.5 kg |
Beadlock or protection-ring configuration
The threaded holes on the outer edge make Atlas BL configurable according to its intended use. The beadlock ring is intended for the 9×17″ size, while the protection ring is intended for the 8×17″ size.
The protection ring covers the threaded holes and helps protect the wheel’s outer edge. It can be customised in colour to create a coordinated or contrasting configuration with the wheel.
Materials, finishes and configurations
Atlas BL is made from A356 aluminium alloy.
Standard colours are white and matt black. Silver, gold, anthracite, glossy black, matt bronze and glossy bronze are also available.
Applications and compatibility check
Atlas BL must be configured according to the specifications of each individual vehicle and its intended use. Before ordering, it is necessary to verify the vehicle year and version, wheel size, PCD, ET, centre-bore diameter, available brake clearance, tyre, beadlock or protection-ring configuration, and applicable approval requirements.
The sizes, weights and configurations shown may vary according to the specific wheel specification. To identify the correct configuration, contact the EVO Corse team or use the configurator.
Ford: Ranger, Transit Custom, Bronco
Jeep: Wrangler
Land Rover: Defender 90 – 110
Mercedes: Sprinter / Sprinter 4×4
Nissan: Patrol
Toyota: Tundra, Land Cruiser, Prado, Hilux
Volkswagen: Transporter / Caravelle, Multivan, Amarok
