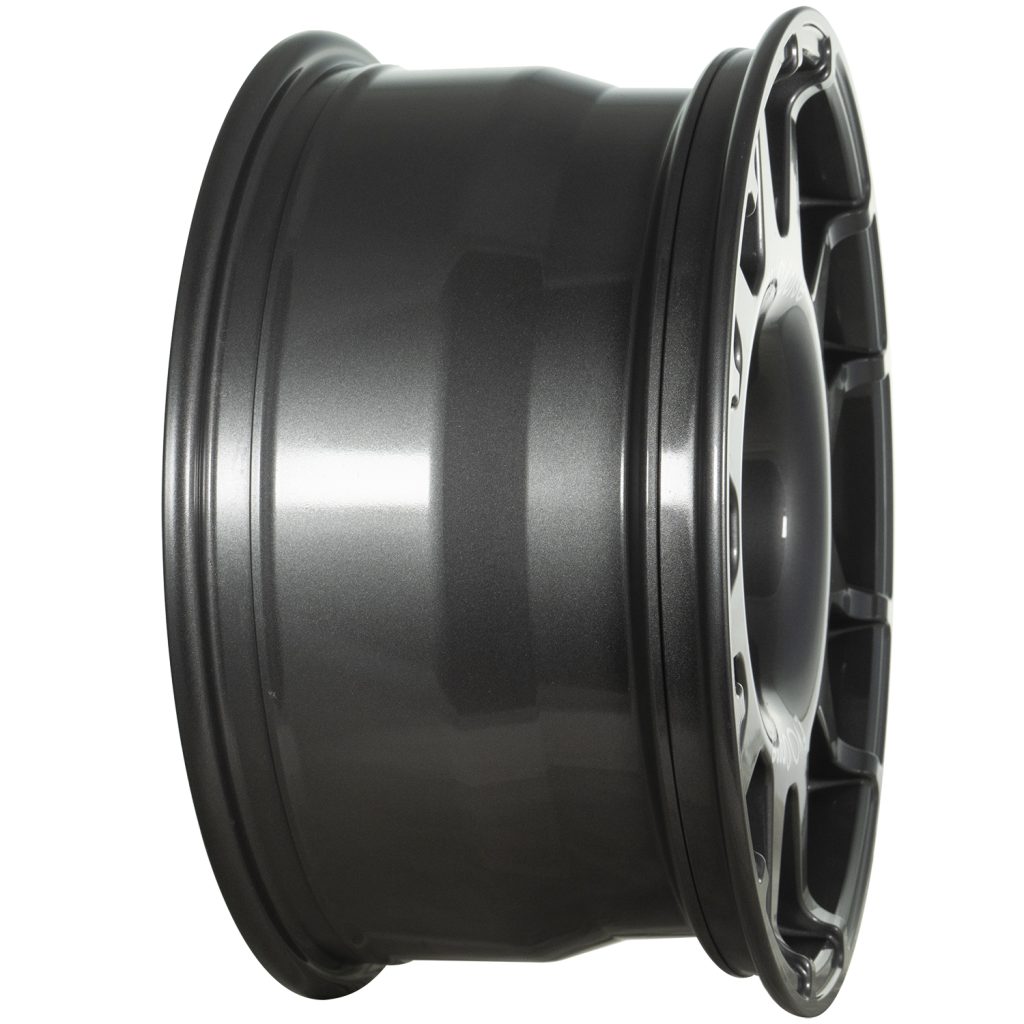

DakarSuperZero 17
DakarSuperZero is the Dakar range version dedicated to heavy-duty 4×4s. The wheel is designed to withstand loads of up to 2,000 kg per wheel and is available in 8.5×17″ and 9×17″ sizes to allow the use of wide tyres.
Its optimised anti-debeading profile and the availability of negative ET values, down to -15, make DakarSuperZero a dedicated solution for Overland-style off-road configurations.
Designed for high loads and wide tyres
DakarSuperZero 17 is developed for 4×4 vehicles requiring a 17″ wheel with a high load rating and widths suitable for larger-section tyres. The configuration must be defined by taking into account the vehicle, intended load, tyre, ET, PCD, braking system and available clearance.
The availability of negative ET values allows the suspension setup and wheel position to be defined according to the requirements of the specific application.
AVAILABLE SIZES
DakarSuperZero 8.5×17″
The 8.5×17″ size offers the lowest ET value in the range, down to -15, for off-road configurations requiring greater outward wheel position.
| Size | ET | PCD | Weight |
|---|---|---|---|
| 8.5×17″ | from -15 to 35 | from 4×98 to 8×185 | from 14.5 to 15.5 kg |
DakarSuperZero 9×17″
The 9×17″ size is dedicated to configurations requiring a wider wheel for larger-section tyres.
| Size | ET | PCD | Weight |
|---|---|---|---|
| 9×17″ | from -8 to 42 | from 4×98 to 8×185 | from 14.7 to 15.7 kg |
Anti-debeading profile
DakarSuperZero 17 features an optimised anti-debeading profile, developed for off-road use with dedicated tyres. The correct combination of wheel, tyre and inflation pressure must always be verified according to the intended use.
Materials, finishes and configurations
DakarSuperZero 17 is made from A356-T6 aluminium alloy.

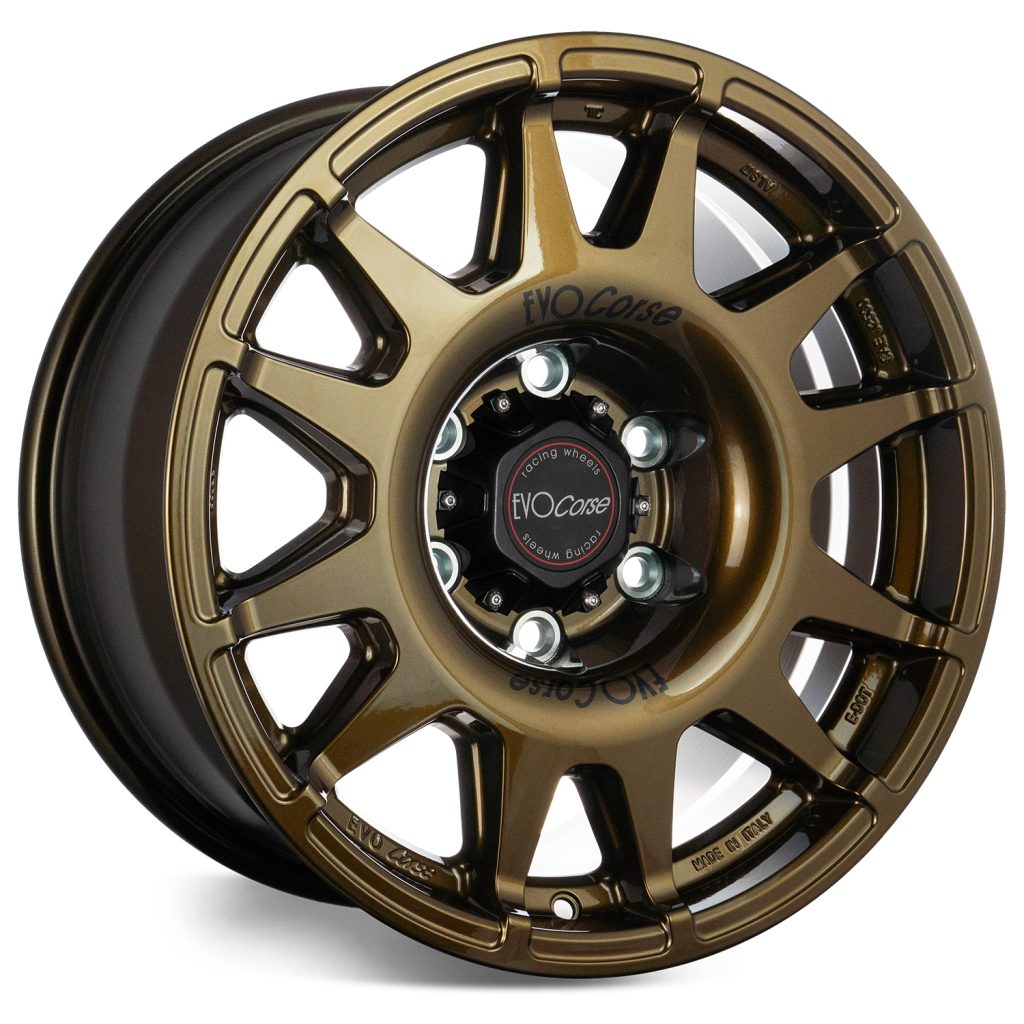

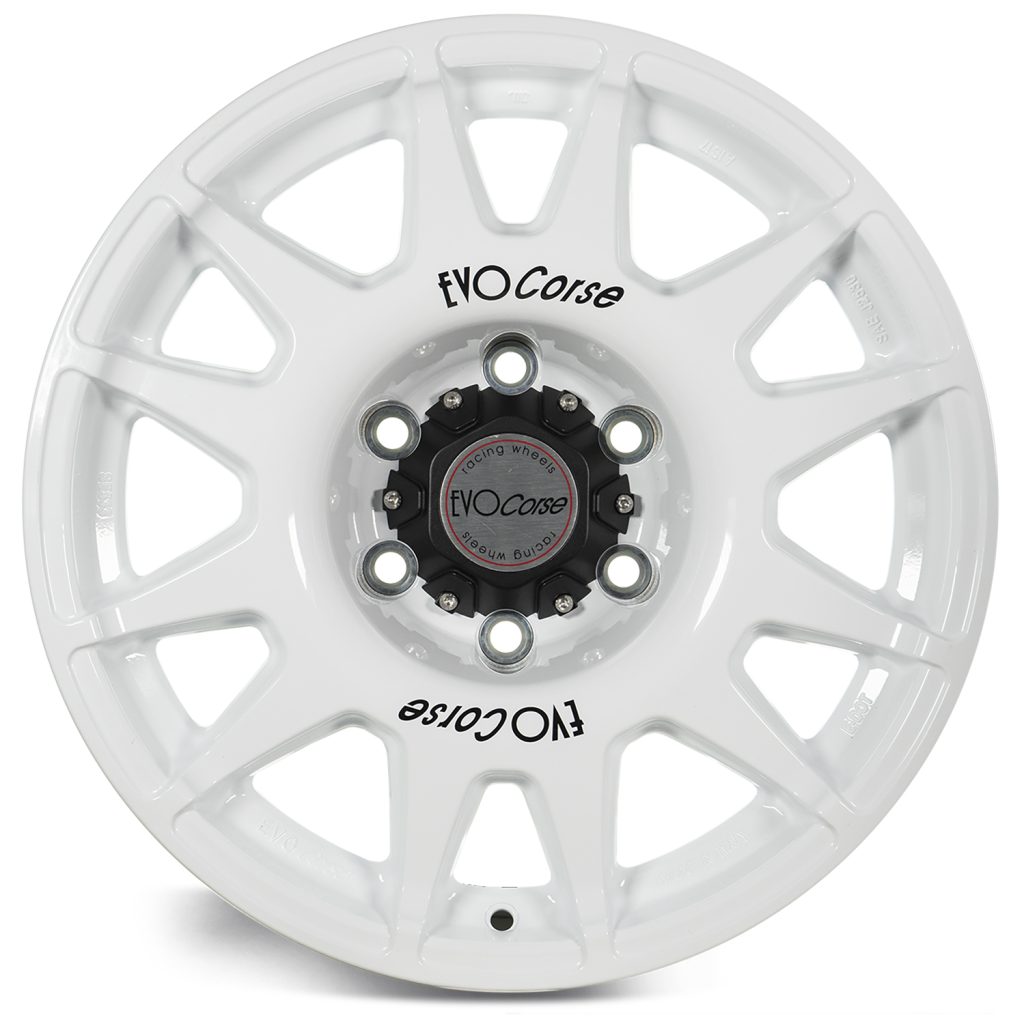

Standard colours are white and matt black. Silver, gold, anthracite, glossy black, matt bronze and glossy bronze are also available.
Applications and compatibility check
DakarSuperZero 17 must be configured according to the specifications of each individual vehicle. Before ordering, it is necessary to verify the vehicle year and version, wheel size, PCD, ET, centre-bore diameter, available brake clearance, tyre, intended load and applicable approval requirements.
The sizes, weights and configurations shown may vary according to the specific wheel specification. To identify the correct configuration, contact the EVO Corse team or use the configurator.
Dodge: RAM 1500
Ford: Bronco, F150 Raptor, F250, Ranger
GMC: Sierra 1500, Sierra 2500
Jeep: Grand Cherokee, Wrangler
Land Rover: Defender 90 – 110, Discovery, Range Rover
Lexus: GX 460, LX450, LX470
Mercedes: Sprinter / Sprinter 4×4
Nissan: Patrol
Toyota: Hilux, Land Cruiser, Land Cruiser / Prado, Tundra
Volkswagen: Amarok, Touareg
